Pneumatic Vacuum Elevators

Pneumatic Vacuum Elevators

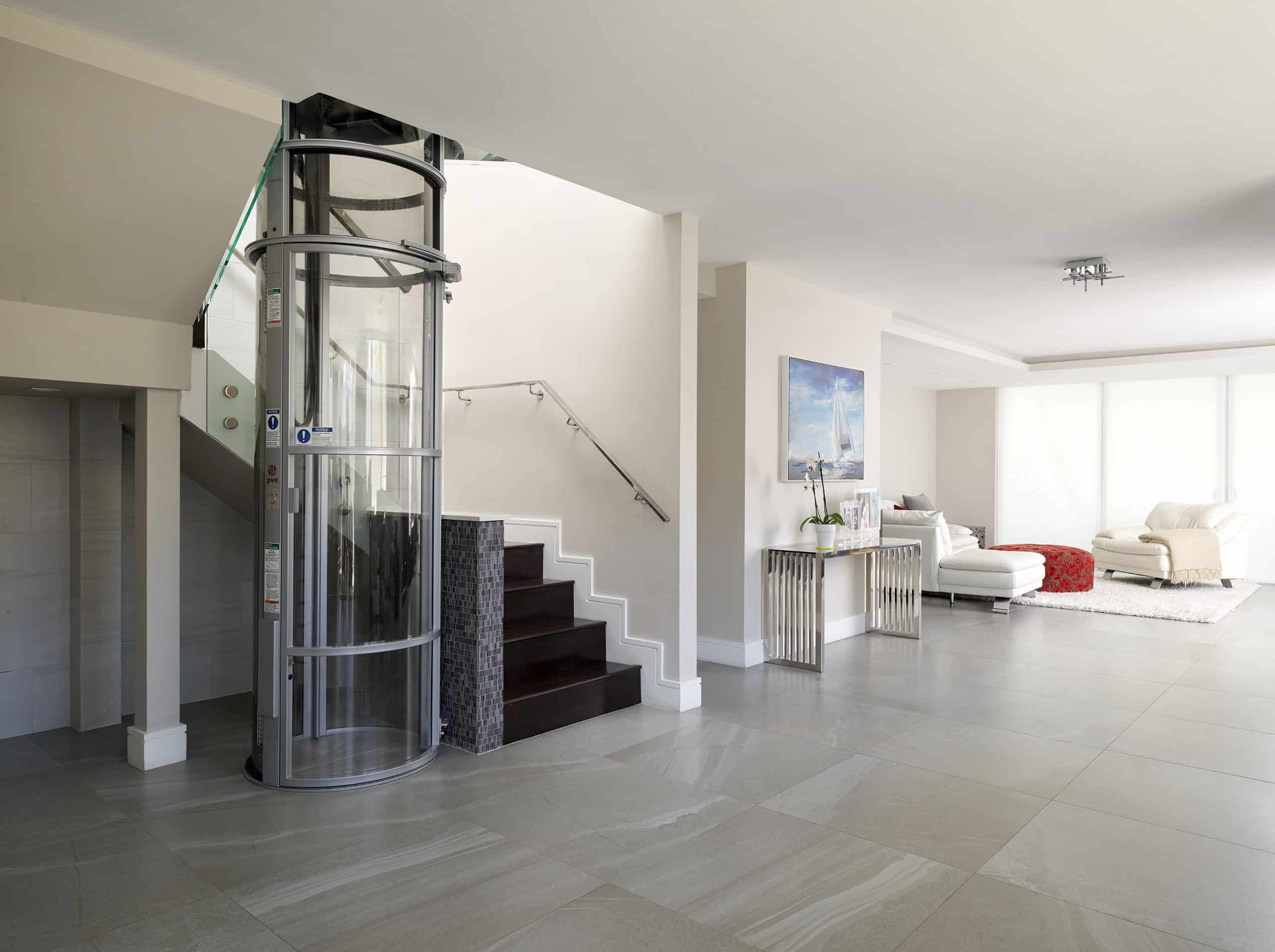

The Vacuum Elevator combines a smooth vertical cylinder with a coaxial car that moves up and down through air suction. The principle operation of the elevator is based on the ascending push generated by the difference between the atmospheric pressure on the top of the car and the atmospheric pressure under the car. The depression (vacuum) required to lift the car is achieved by turbines operating as exhaust fans which are located at the top of the elevator.

  • The piston gear surrounded by a sliding air tight seal allows an almost frictionless movement and hoists the car due to the pneumatic depression generated on the upper part.
  • A valve regulating inflow of air controls the pneumatic depression, enables descent and controls the speed of the car.
  • The lower part of the shaft is open to ensure free entrance of air at – atmospheric pressure.
  • At each floor or level, perimeter seals on the door are self-sealing due to the action of the atmospheric pressure.
  • The car has locking devices to stop at the upper and lower limits of travel.
  • A safe braking device (chute) activates in case of free fall.



  • PVE 30

    • Single Passenger
    • No pit, hoist way, or machine room required
    • 35 ft total rise Max
    • 30 ft/min travelling speed
    • 350 lbs. lifting capacity
    • External cylinder diameter: 30”
    • Internal cabin diameter: 20 ½”
    • Entrance way opening: 20 ½”
    • Through Floor or Balcony Mount Landings
    • Power Supply: 25 AMP 220VAC
    • In-line door openings
    • Aluminum and polycarbonate cylinder structure
    • Automatic interior LED lighting and fan
    • Mechanical emergency safety brake system
    • One year limited manufacturer warranty
    • ASME A17.7 Certified

  • PVE 37

    • Two Passenger
    • No pit, hoist way, or machine room required
    • 35 ft total rise Max
    • 30 ft/min travelling speed
    • 450 lbs. Lifting capaciy
    • External cylinder diameter: 37”
    • Internal cabin diameter: 32”
    • Entrance way opening: 21”
    • Through Floor or Balcony Mount Landings
    • Power Supply: 30 AMP 220VAC
    • In-line and 180° door openings
    • Aluminum and polycarbonate cylinder structure
    • Automatic interior LED lighting and fan
    • Mechanical emergency safety brake system
    • One year limited manufacturer warranty
    • ASME A17.7 Certified

  • PVE 52

    • Three Passenger
    • Wheelchair accessible
    • No pit, hoist way, or machine room required
    • 35 ft total rise Max
    • 20 ft/min travelling speed
    • External cylinder diameter: 52 11/16”
    • Internal cabin diameter: 43 ½”
    • Entrance way opening: 32”
    • Through Floor or Balcony Mount Landings
    • Power Supply: 35 AMP 220VAC
    • In-line and 180° door openings
    • Aluminum and polycarbonate cylinder structure
    • Automatic interior LED lighting and fan
    • Mechanical emergency safety brake system
    • One year limited manufacturer warranty
    • ASME A17.7 Certified
