Genesis Shaftway Model

Genesis Shaftway Model

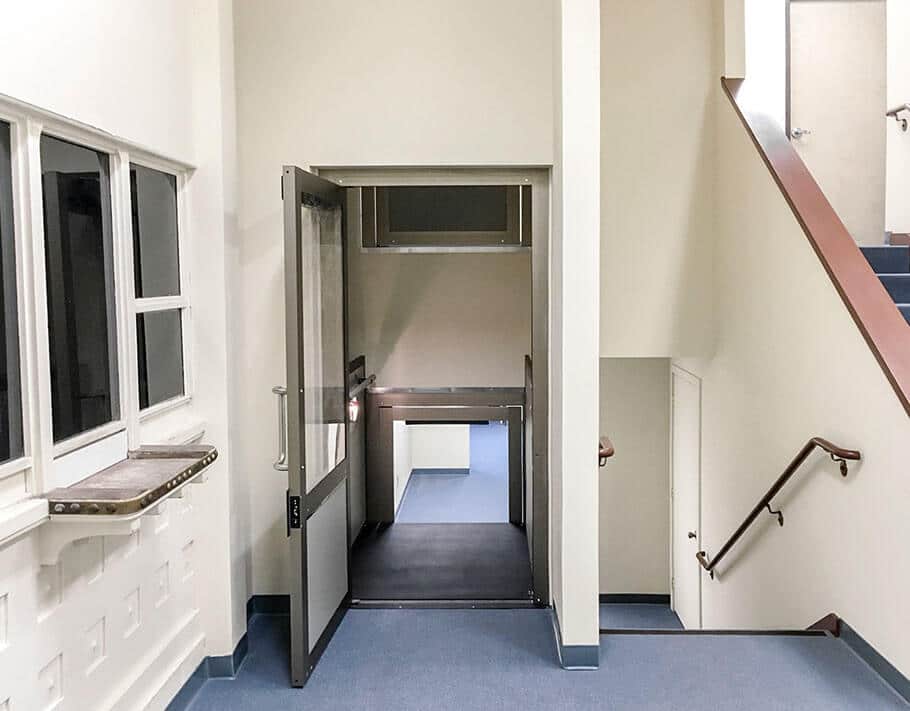

The Genesis Shaftway Model fits inside a vertical runway (also known as a hoist way) that is built by others in accordance to Garaventa Lift specifications. This vertical platform lift consists of a drive mast, passenger platform, doors and gates. The hoist way at the uppermost landing can be protected by a gate and surrounding hoist way walls that are only 42″ tall. Another alternative is to put a full height door (80″ tall) on the lift entrance and extend the surrounding walls to the ceiling. In cases where children or teens may be frequenting the area, it is advisable to enclose the uppermost landing completely, even if this exceeds minimum code requirements.

Standard Features:

  • 750 lb capacity
  • Speed: 10 FPM with a 1HP, 115V motor
  • Lifting height:up to 144″ / 168 may require a variance from local authorities
  • Steel constructed with electrostatic, powder-coated finish
  • Constant pressure up/down control switch installed on the platform

Optional Features:

  • 230V motor
  • Remote mounted controller
  • ADA phone for both indoor and outdoor models
  • Emergency lights
  • Choice of RAL colors
  • Key switch to lock platform
  • Flip-up ramp
  • Battery back-up
  • Custom Platform Sizes

Safety Features:

  • Nonskid platform surface
  • Obstruction safety panel under platform (when not installed within a runway enclosure)
  • Alarm and emergency stop switch
  • Grab rail
  • Landing interlocks keep door locked when the lift is on another floor
  • Upper final limit

Drive Options:

  • Leadscrew Drive
  • Hydraulic Drive
