Products

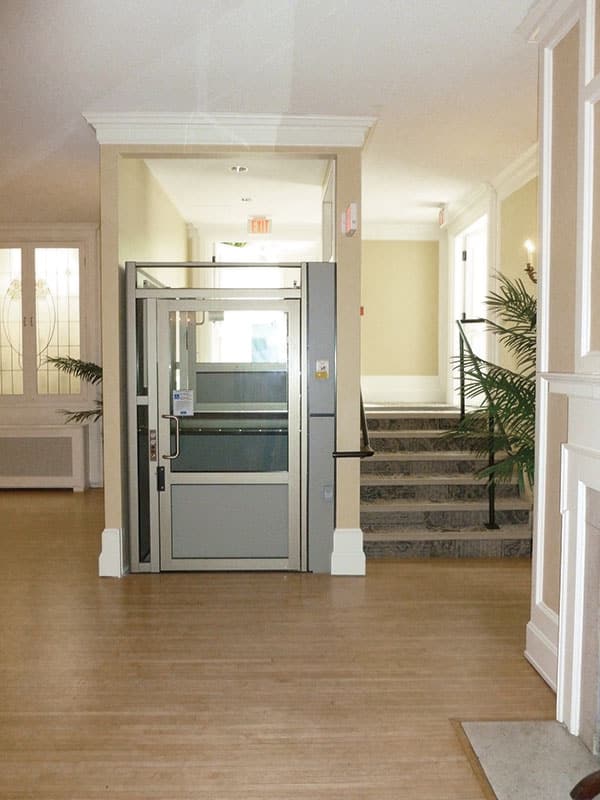

Genesis Enclosed Model

The Enclosure Model is a complete, self-contained vertical platform lift consisting of a drive mast,passenger platform, doors/gates and factory manufactured walls that enclose the lift. No need to be concerned with the construction of a hoistway (also known as a shaftway). This style of lift can normally be installed without the need for extensive site modifications. The enclosure itself features an attractive extruded aluminum frame and panels made of steel, Plexiglas or safety glass.Custom materials, colors and graphics are also available.

Standard Features:

  • 750 lb capacity
  • Speed: 10 FPM with a 1HP, 115V motor
  • Lifting height:up to 144″ / 168 may require a variance from local authorities
  • Steel constructed with electrostatic, powder-coated finish
  • Constant pressure up/down control switch installed on the platform

Optional Features:

  • 230V motor
  • Remote mounted controller
  • ADA phone for both indoor and outdoor models
  • Emergency lights
  • Choice of RAL colors
  • Key switch to lock platform
  • Flip-up ramp
  • Battery back-up
  • Custom Platform Sizes

Safety Features:

  • Nonskid platform surface
  • Obstruction safety panel under platform (when not installed within a runway enclosure)
  • Alarm and emergency stop switch
  • Grab rail
  • Landing interlocks keep door locked when the lift is on another floor
  • Upper final limit

Drive Options:

  • Leadscrew Drive
  • Hydraulic Drive
