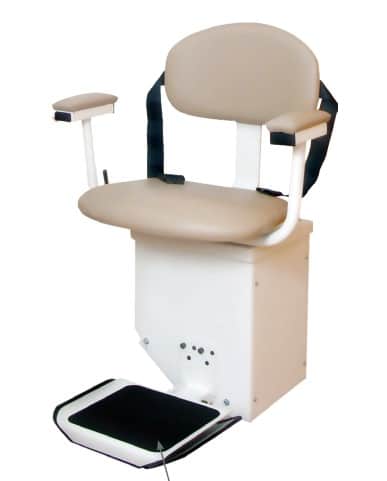

Outdoor Stair Lift

Outdoor Stair Lift

  • Weatherproofed to withstand the elements
  • Extruded aluminum track
  • Weatherproof cover included
  • Marine grade vinyl seat
  • 350 lbs. lifting capacity
  • Travels 20 FPM
  • Drive system: Cable Drive
  • Separate controls at top and bottom of stairs
  • Operates on standard 115 VAC household current



The most advanced straight stair lift ever developed.

Engineered to withstand the elements. The Summit is made with durable extruded aluminum track with seating in exterior marine-grade vinyl. Handles rain, wind, snow.

Designed for longer outdoor applications with operating temperatures ranging from 0°–125°F (-17°–51°C). Seat and fold rest fold to allow for unobstructed passage when not in use. Includes header, internal chassis, and large weather proof covers for even more protection.

Features

  • Designed for Long-Term Outdoor Use
  • Speed Regulator
  • Travels Up to a 45° Incline (min. 30˚)
  • Seat and Footrest Fold
  • Zinc Plated Components
  • Marine-Grade Vinyl Seat Cushions
  • Header Cover, Internal Chassis Cover and Large
    Weatherproof Cover Included

Safety Features

  • Footrest Obstruction Switch
  • Swivel Seat Cut-off Switch
  • Final Limits
  • Slack Cable Break w/ Switch
  • Constant Pressure Controls
  • Seat Belt

Specifications

  • Speed: 20 fpm
  • Weight Capacity: 350 lb
  • Electrical Requirements:
    Summit AC – 120V AC / 60 Hz
    Dummit DC – 120V AC / 60 Hz (Battery Powered 24 V DC)
